RFLink 433 Gateway components
The components for building a RFlink Gateway that can be placed on an Arduino Mega. This can be used in combination with Domoticz.

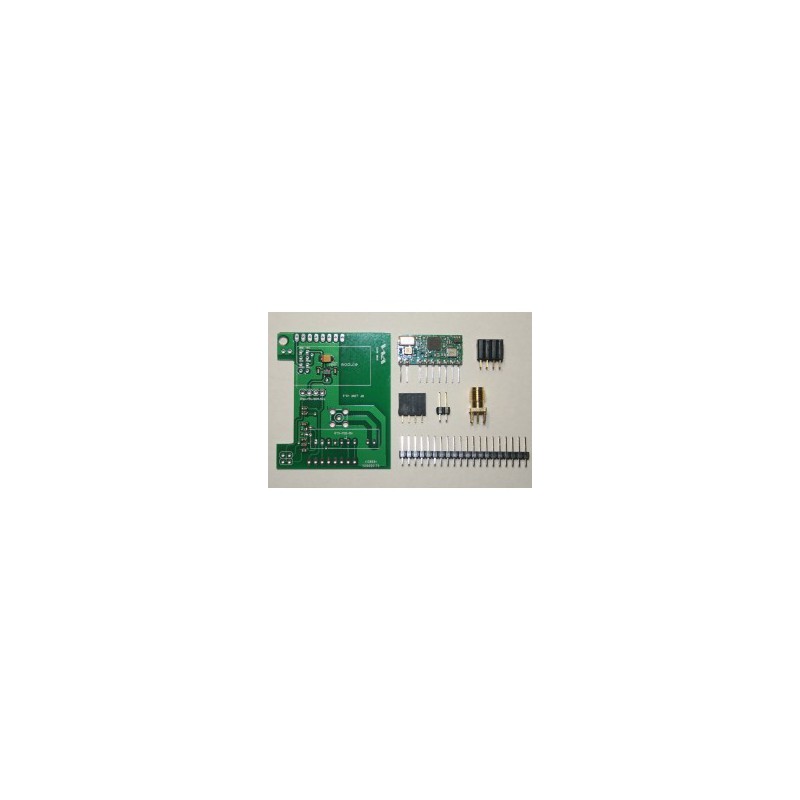

The components for building a RFlink Gateway (consisting of a 433 MHz Transceiver from Aurel, various type headers, SMA connector and a pcb) The gateway also has connectivity to an NRF module and I2C port
With this set you can quickly start using Domoticz. Only add an Arduino Mega and antenna.
For more information about example RFLink firmware you can look here: http://www.nemcon.nl/blog2/
This set is for use with systems operating at 433,920 MHz (see list on nemcom.nl), for the use with the RTS systems listed on the site (e.g., Somfy) it is very unreliable, because it works at 433,420 MHz. if you want to control RTS systems, you need the special RTS version (433,420 MHz). Sadly they can't be combined together on a single RFLink.
It's a kit, so you have to solder the RFLink yourself (or use the solderservice)
You can choose whether you use a 433Mhz SMA Antenna (SMA connector supplied) on the PCB or you're not using the SMA connector on the PCB and solder a wire antenna on it.
You can find the construction manual on our Downloads page.
