RFLink 433.92 Synology kit/Arduino CH340/dipole/usb cable
Kit with RFlink PCB, an Arduino Mega compatible with CH340 chip and 433Mhz dipole antenna. Can be used in conjunction with Domoticz.
For use with Synology NAS, works also with other systems.

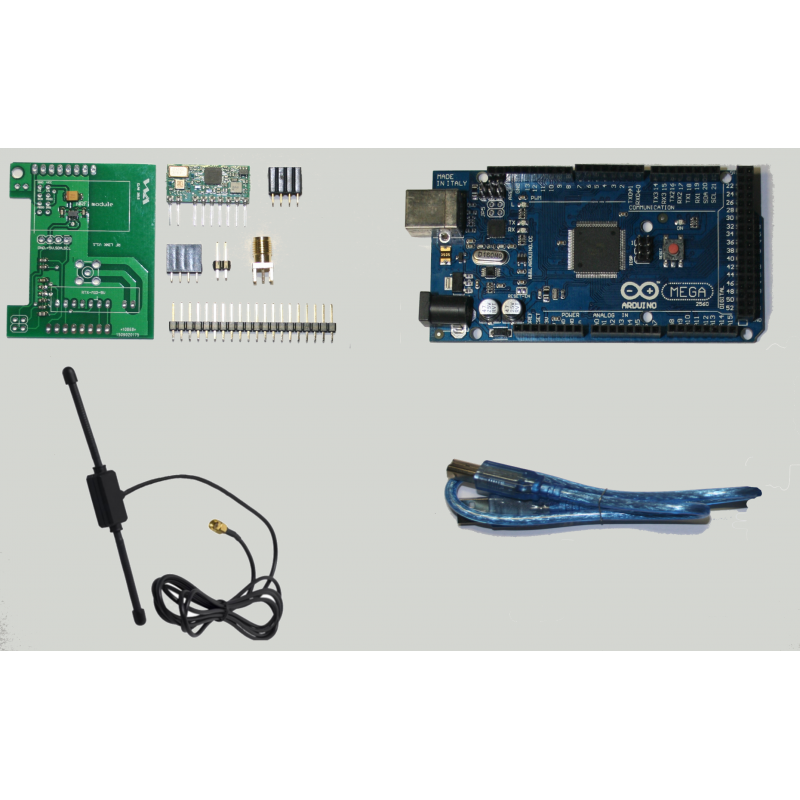

This package consists of a gateway RFlink PCB (comes with 433 MHz Transceiver Aurel, connectors for an NRF 2.4GHz module and I2C ), an Arduino Mega Compatible with CH340 chip, 433Mhz dipole antenna and USB cable.
With this set you can quickly start using Domoticz.
For more information about example RFLink firmware you can look here: http://www.nemcon.nl/blog2/
This set is for use with systems operating at 433,920 MHz (see list on nemcom.nl), for the use with the RTS systems listed on the site (e.g., Somfy) it is very unreliable, because it works at 433,420 MHz. if you want to control RTS systems, you need the special RTS version (433,420 MHz). Sadly they can't be combined together on a single RFLink.
It's a kit, so you have to solder the RFLink yourself (or use the solderservice)
You can find the construction manual on our Downloads page.
